THE ULTIMATE DIGITAL POS HEADER FOR THE RETAIL INDUSTRY

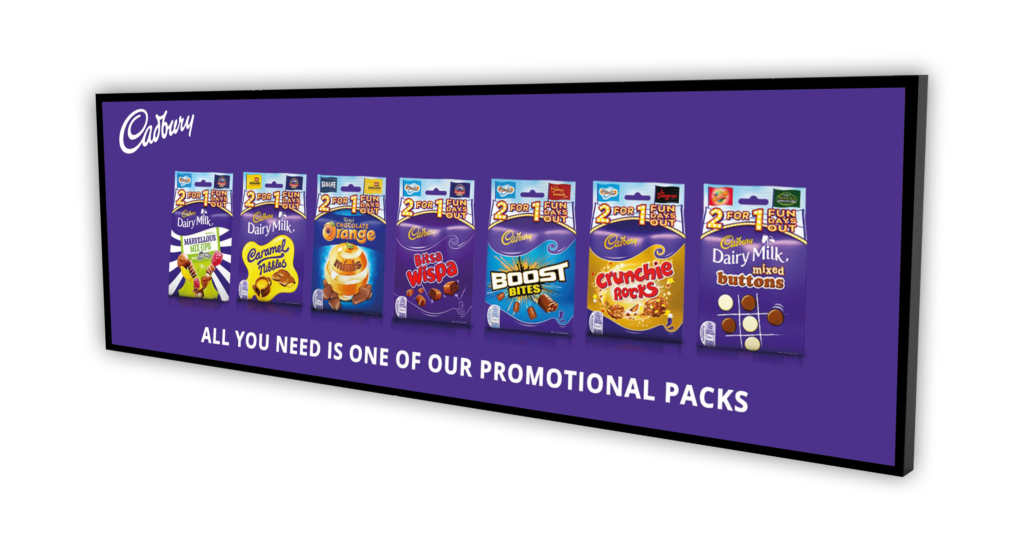

High profile branded products should have a POS system that makes then stand out from the crowd in the busy world of retail and give them a USP. So, designed specifically for the retail trade, the TOPAZ Stretch Screen replicates a traditional retail header board but allows digital content to make your product really stand out in this very busy environment.
Download Product Sheet
See Product Specs
Product Images
TOPAZ STRETCH DISPLAY SPECIFICATIONS
| SIZE | 28" | 37" |
|---|---|---|

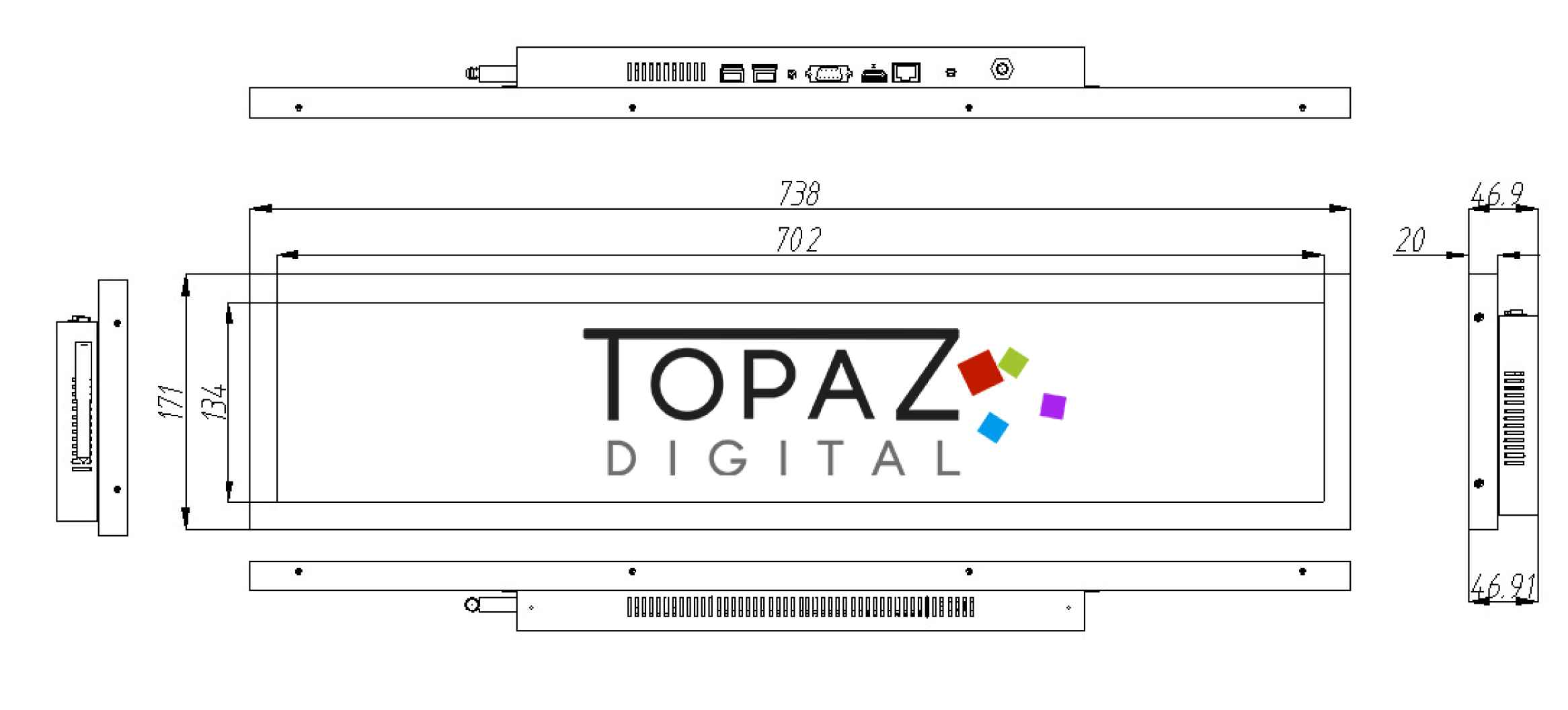

| Unit Size (wxhxd mm) | 738x171x46.9 | 954.5x291.5x51.5 |
| Unit Weight (kg) | 6 | 8 |
| Display Area (mm) | 702x134 | 919.3x259.55 |
| VESA Configuration | 75x75 | 100x100 |
| Resolution | 1920x360 | 1920x1080 |
| Aspect Ratio | 16:3 | 32:9 |
| Brightness (cd/m2) | 700 | 1000 |
| Contrast Ratio | 1200:1 | 1000:1 |
| Colour | 16.7M | 16.7M |
| Viewing Angle | 89° | 89° |
| Input Voltage | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) |
| Operating Temperature | 0°C to 40°C | 0°C to 40°C |
| Operating Humidity | 5% to 95% | 5% to 95% |
| Display Size | 28" | 37" |
|---|---|---|
| Video | HDMI VGA | HDMI VGA |
| Audio | Audio Socket (3.5mm) | Audio Socket (3.5mm) |
| SIZE | 28" | 37" |
|---|---|---|
| Media Resolution | 1920x360 | 1920x540 |
| Internal Memory | 8GB | 8GB |
| CPU | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz |
| GPU | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 |
| RAM | 2GB DDR3 | 2GB DDR3 |
| ROM | 8GB eMMC | 8GB eMMC |
| USB | 1 x USB (OTG/HOST), 1 x USB (HOST) | 1 x USB (OTG/HOST), 1 x USB (HOST) |
| LAN | 100/1000M Ethernet | 100/1000M Ethernet |
| WiFi | 802.11b/g/n/ac | 802.11b/g/n/ac |
| OS | Android 7.1 | Android 7.1 |
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 |
| Software | TOPAZ CMS | TOPAZ CMS |
| Media Formats | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG |
28″
37″
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Launch CMS
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
