SERVICE YOUR CUSTOMERS QUICKER AND EASIER WITH THE ALL-ONE SELF-SERVICE KIOSK
Our outdoor touch displays combine sleek looks of our freestanding ASL displays, with 10-point PCAP Touch Technology, housed in a robust IP65 rated enclosure ensuring your customers can interact with them regardless of the weather.
The state-of-the-art projected capacitive (PCAP) technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.
TOPAZ OUTDOOR FREESTANDING TOUCH DISPLAY
|Resolution||1080 x 1920|
|Display Area (mm)||680.2 x 1209.4|

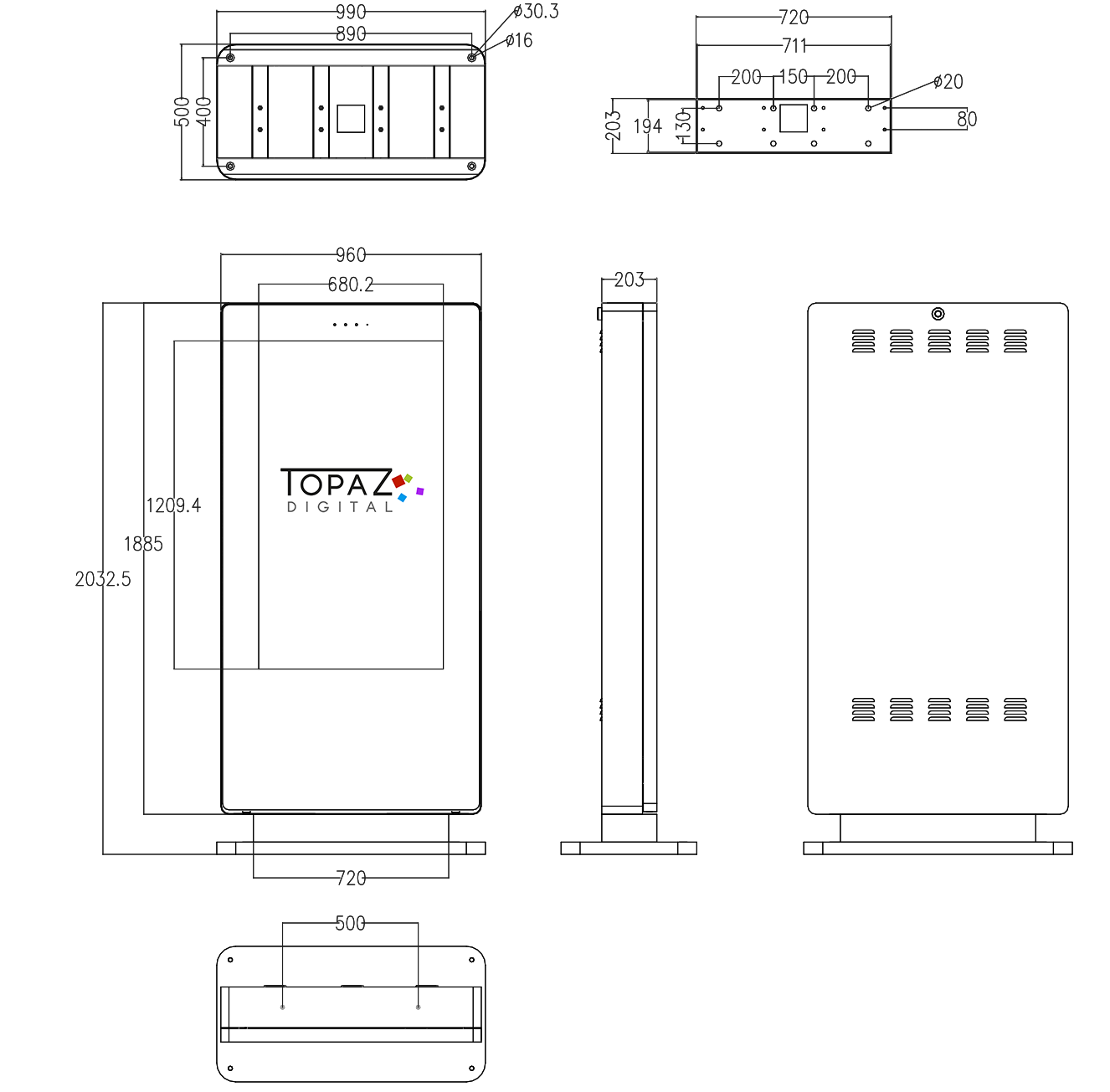

|Unit size (WxHxD mm)||2032.5 x 960 x 203|
|Net weight (kg)||224|
|Operating Temperature||-20°C - +50°C [Ability to operate to Minus 50 °C with additional heater]|
|Operating Humidity||10% - 80%|
|Storage Temperature||-30°C - 60°C|
|Storage Humidity||5% - 90%|
|Touch technology||Projected Capacitive|
|Glass Hardness||7H Minimum|
|Audio||Audio Socket (3.5mm)|
|CPU||Quad-Core Cortex-A9 @1.6GHz|
|GPU||Mali-400 MP4 @600MHz|
|USB||USB2.0 Host (x2)|
|Graphic Engine||OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1|
|Media Formats||Video (MPG, AVI, MP4, RM, RMVB, TS),
Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
