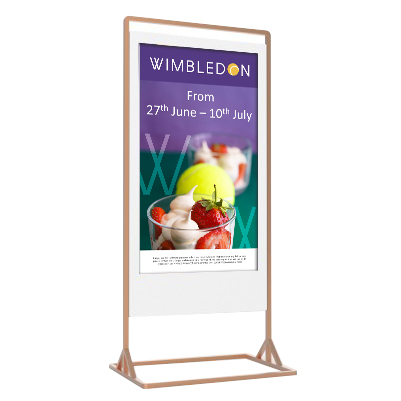

MAKE YOUR MESSAGE STAND OUT WITH THE STYLISH TOPAZ SLIMLINE DOUBLE-SIDED DISPLAY
The TOPAZ slimline double-sided display has been created to deliver power, performance and style.
Designed to operate 24/7 you have peace of mind that you’re investing in commercial grade equipment which has been built for the rigors of digital signage in mind.
These displays have been designed to create maximum impact, with the double-sided display feature and brushed metal framing making it perfect for any showroom.

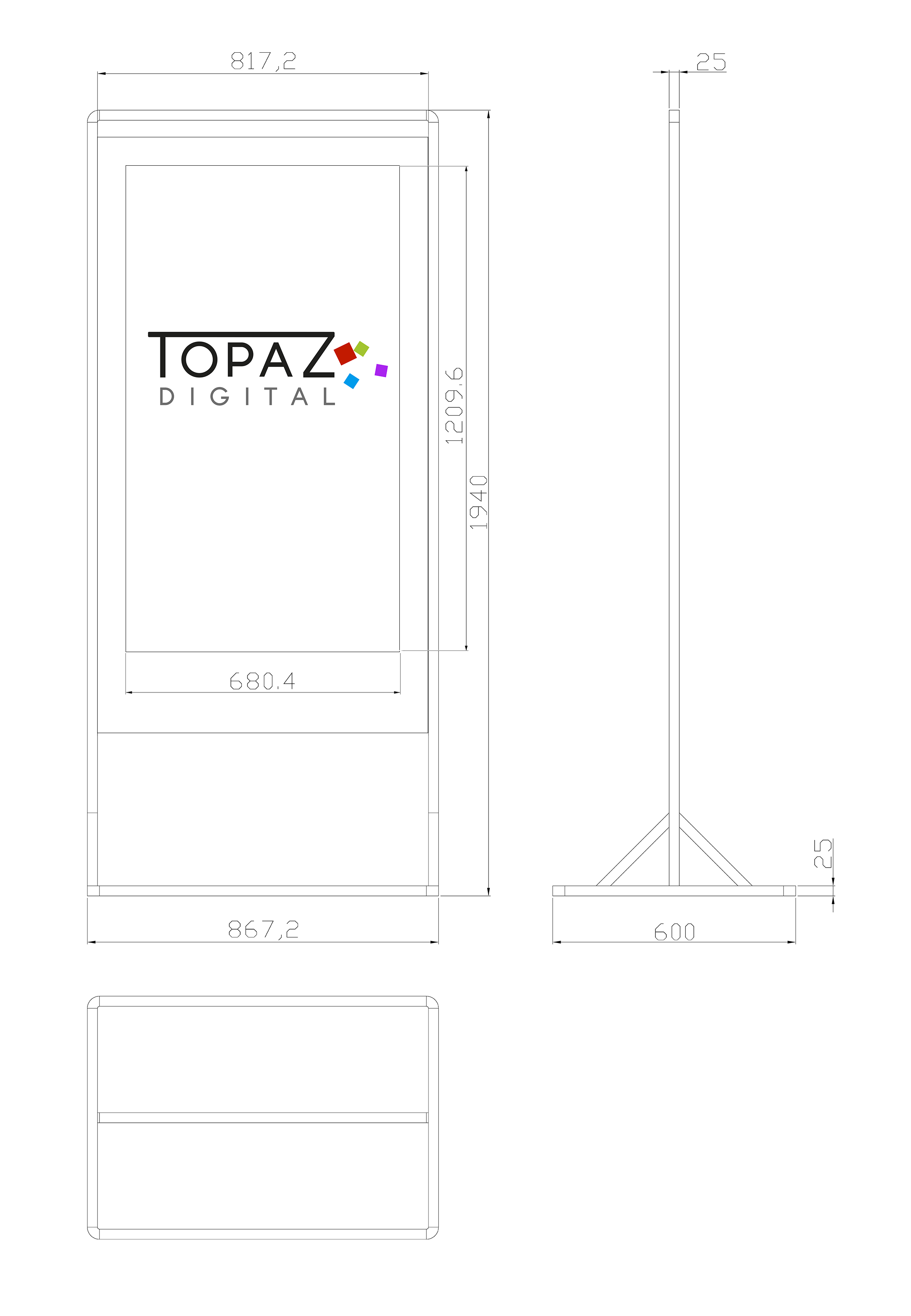

DOUBLE-SIDED FREESTANDING DISPLAY SPECIFICATIONS
|1840 x 684.6 x 25||1840 x 684.6 x 25|
|Unit Weight (kg)||23.45||33|
|Display Area (mm)||943.2x531.4||680.4x1209.6|
|Speaker Type||2W, 8Ω (x2)||2W, 8Ω (x2)|
|Resolution||1920 x 1080||1920 x 1080|
|Brightness Side A (cd/m2)||700||700|
|Brightness Side B (cd/m2)||700||700|
|Input Voltage||AC110-240V (50Hz-60Hz)||AC110-240V (50Hz-60Hz)|
|Working Temperature||0ºC to 40ºC||0ºC to 50ºC|
|Audio||Audio Socket (3.5mm)||Audio Socket (3.5mm)|
|Media Resolution||1080 x 1920||1080 x 1920|
|CPU||Quad-Core ARM Cortex A17, 1.6GHz||Quad-Core ARM Cortex A17, 1.6GHz|
|GPU||Quad-Core ARM Mali-T764||Quad-Core ARM Mali-T764|
|RAM||2GB DDR3||2GB DDR3|
|ROM||8GB eMMC||8GB eMMC|
|USB||1 x USB (OTG/HOST),|
1 x USB (HOST)
|1 x USB (OTG/HOST),
1 x USB (HOST)
|LAN||100/1000M Ethernet||100/1000M Ethernet|
|OS||Android 7.1||Android 7.1|
|Graphic Engine||OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1||OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1|
|Software||TOPAZ CMS||TOPAZ CMS|
|Media Formats||Video: MPG4|
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
