INTERACT WITH YOUR CUSTOMERS WITH THE TOPAZ™ P-CAP TOUCH SERIES DISPLAYS
TOPAZ Digital strives to simplify digital signage deployment, our SL range is recognised for transforming the traditional way businesses deploy broadcast screens by adapting an ‘All Inclusive’ approach with everything you need built into the display…..with the launch of our P-CAP Touch Series we bring the same ‘All Inclusive’ benefits to our interactive signage!
Download Product Sheet
See Product Specs
Product Images
TOPAZ INDOOR WALL MOUNTED DISPLAY
| SIZE | 22" | 32" | 43" | 50" | 55" |
|---|---|---|---|---|---|
| Unit Size (wxhxd mm) | 530 x 321 x 42.3 | 757.8 x 452.3 x 49.3 | 997.6 x 585 x 50.6 | 1135 x 665.5 x 63.2 | 1275 x 746 x 55 |
| Unit Weight (kg) | 6.1 | 10 | 16.7 | 27 | 29.5 |
| Display Area (mm) | 475 x 226.5 | 698 x 392 | 942 x 530 | 1073 x 603 | 1209.6 x 680.4 |
| VESA Config | 400 x 200 | 400 x 200 | 400 x 200 | 400 x 400 400 x 200 | 400 x 200 |
| Speaker Type | 2W, 4Ω (x2) | 2W, 4Ω (x2) | 2W, 4Ω (x2) | 2W, 4Ω (x2) | 2W, 4Ω (x2) |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m2) | 450 | 450 | 450 | 450 | 450 |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Colour | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing Angle | 178° | 178° | 178° | 178° | 178° |
| Input Voltage | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) |
| Working Temperature | 0ºC to 50ºC | 0ºC to 50ºC | 0ºC to 50ºC | 0ºC to 50ºC | 0ºC to 50ºC |
| SIZE | 22" | 32" | 43" | 50" | 55" |
|---|---|---|---|---|---|
| Touch Technology | Projected Capacitive | Projected Capacitive | Projected Capacitive | Projected Capacitive | Projected Capacitive |
| Touch Points | 10 | 10 | 10 | 10 | 10 |
| AV Inputs | 32" | 43" | 49" | 55" |
|---|---|---|---|---|
| Video | HDMI, VGA | HDMI, VGA | HDMI, VGA | HDMI, VGA |
| SIZE | 22" | 32" | 43" | 50" | 55" |
|---|---|---|---|---|---|
| Media Resolution | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 |
| Internal Memory | 6GB | 6GB | 6GB | 6GB | 6GB |
| CPU | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz |
| GPU | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 |
| RAM | 2GB DDR3 | 2GB DDR3 | 2GB DDR3 | 2GB DDR3 | 2GB DDR3 |
| ROM | 8GB eMMC | 8GB eMMC | 8GB eMMC | 8GB eMMC | 8GB eMMC |
| USB | 1 x USB (OTG/HOST), 1 x USB (HOST) | 1 x USB (OTG/HOST), 1 x USB (HOST) | 1 x USB (OTG/HOST), 1 x USB (HOST) | 1 x USB (OTG/HOST), 1 x USB (HOST) | 1 x USB (OTG/HOST), 1 x USB (HOST) |
| LAN | 100/1000M Ethernet | 100/1000M Ethernet | 100/1000M Ethernet | 100/1000M Ethernet | 100/1000M Ethernet |
| WiFi | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac |
| OS | Android 7.1 | Android 7.1 | Android 7.1 | Android 7.1 | Android 7.1 |
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 |
| Software | TOPAZ CMS | TOPAZ CMS | TOPAZ CMS | TOPAZ CMS | TOPAZ CMS |
| Media Formats | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG |

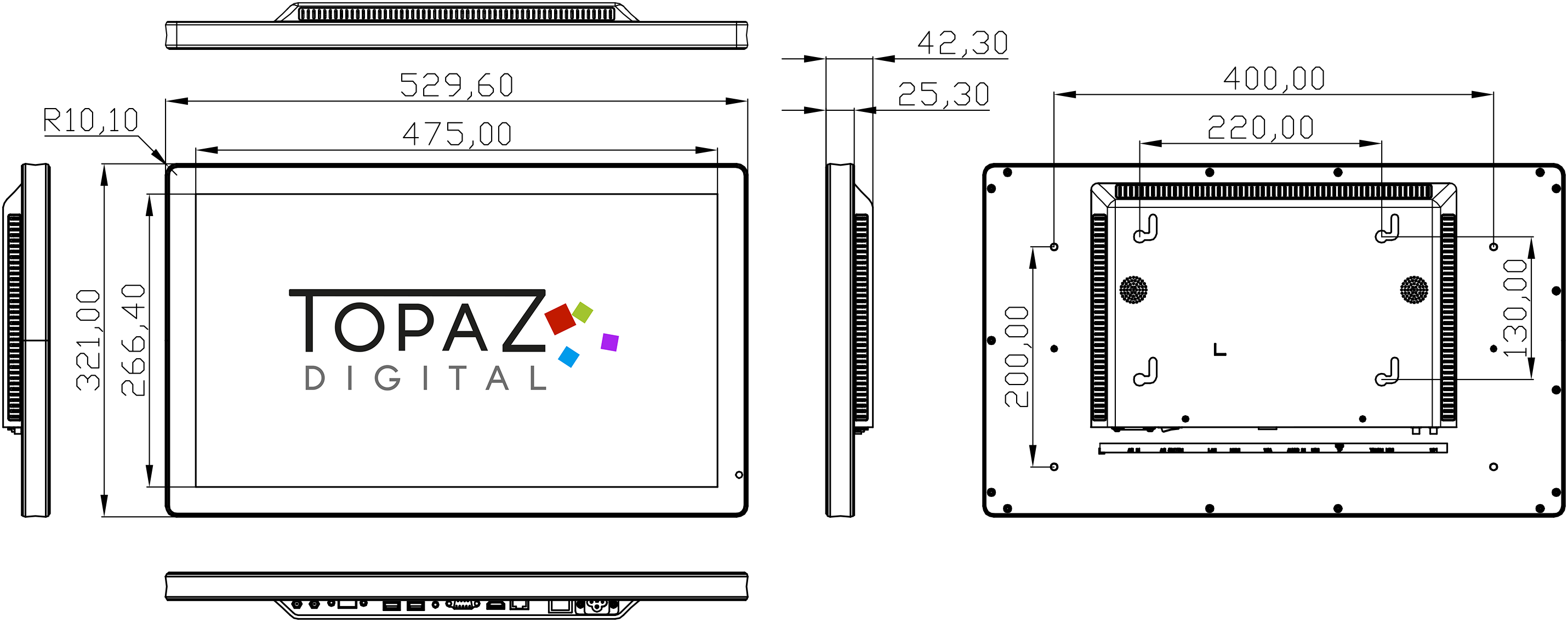

22″

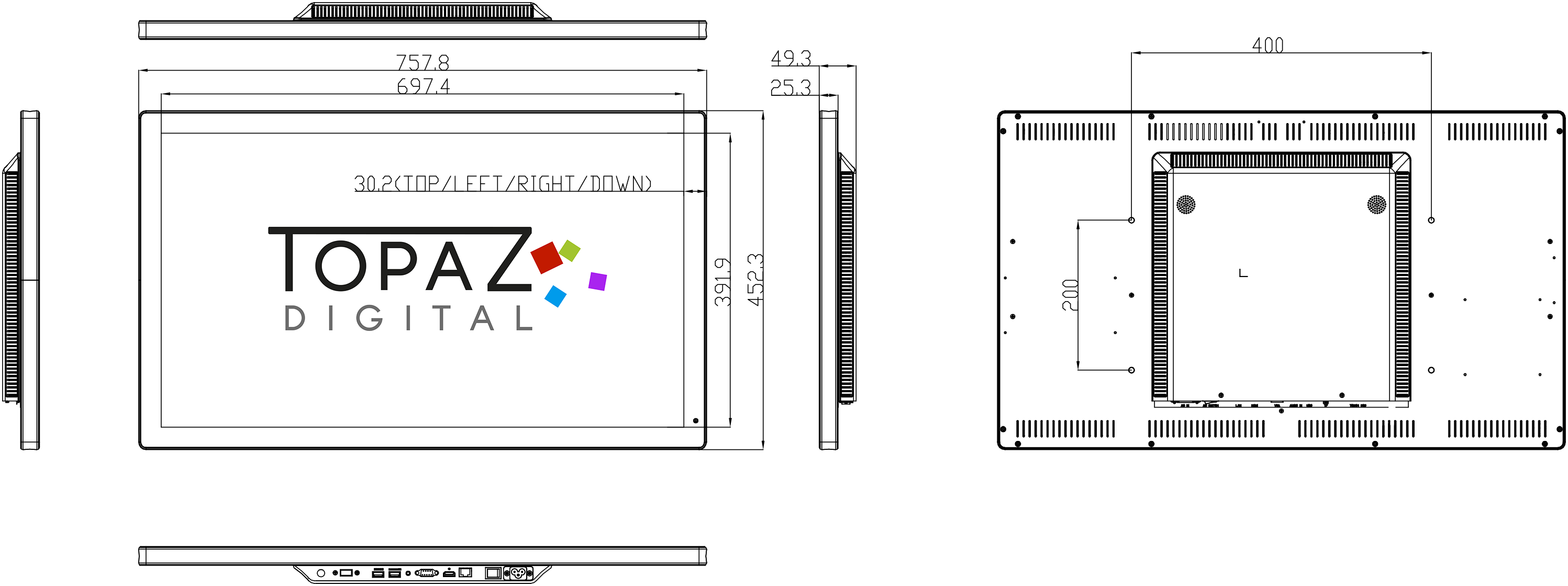

32″

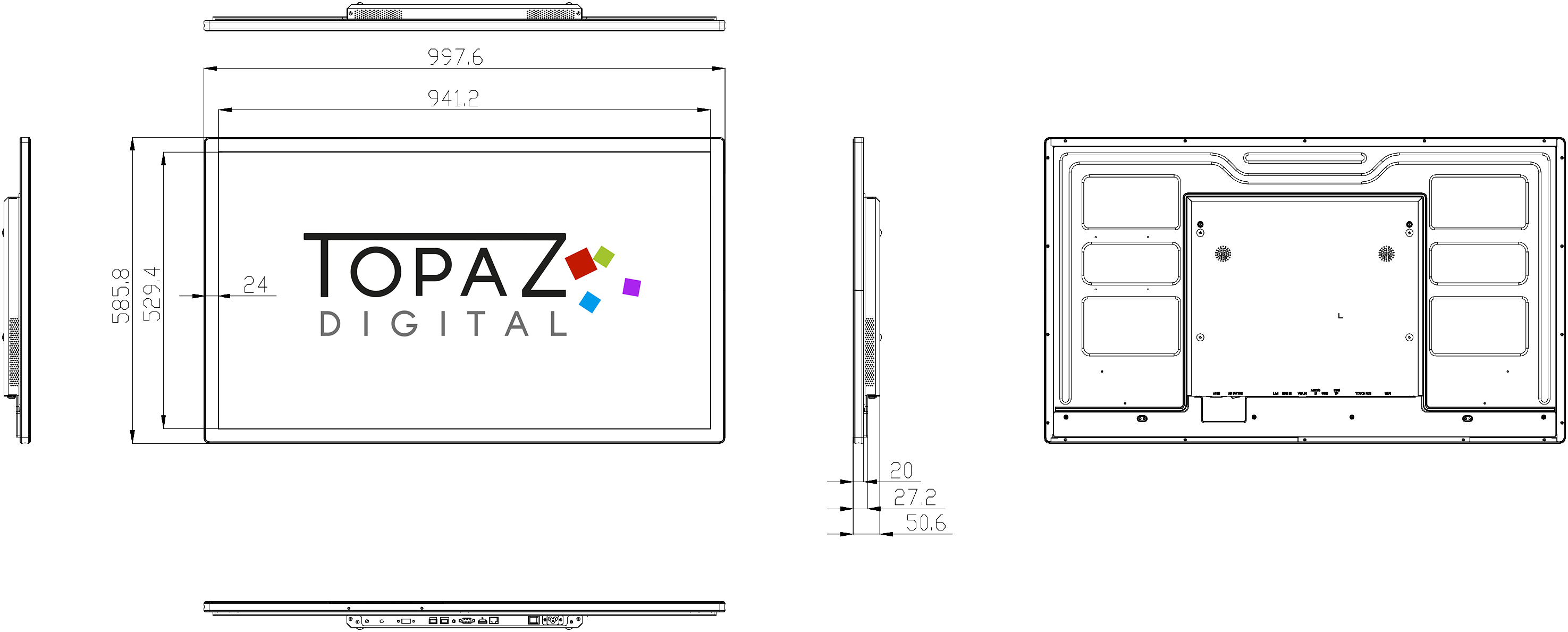

43″

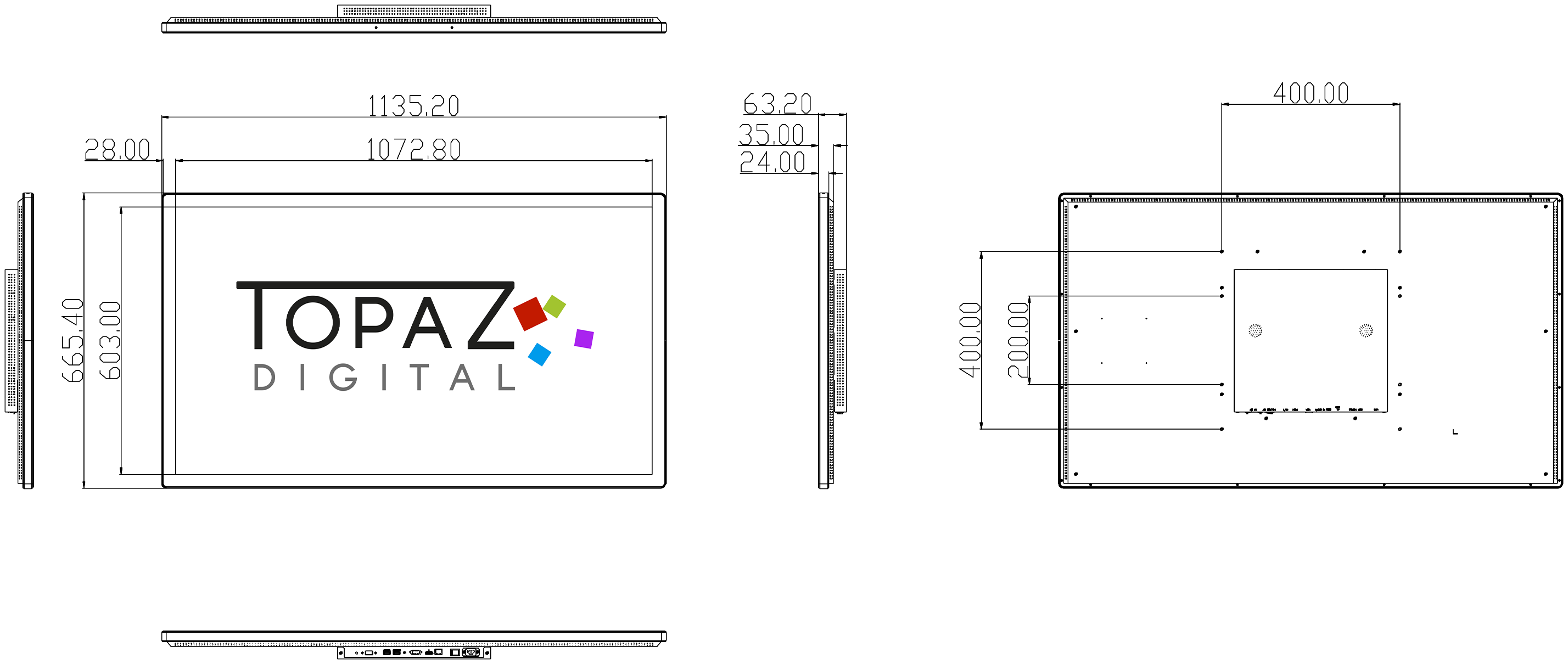

50″

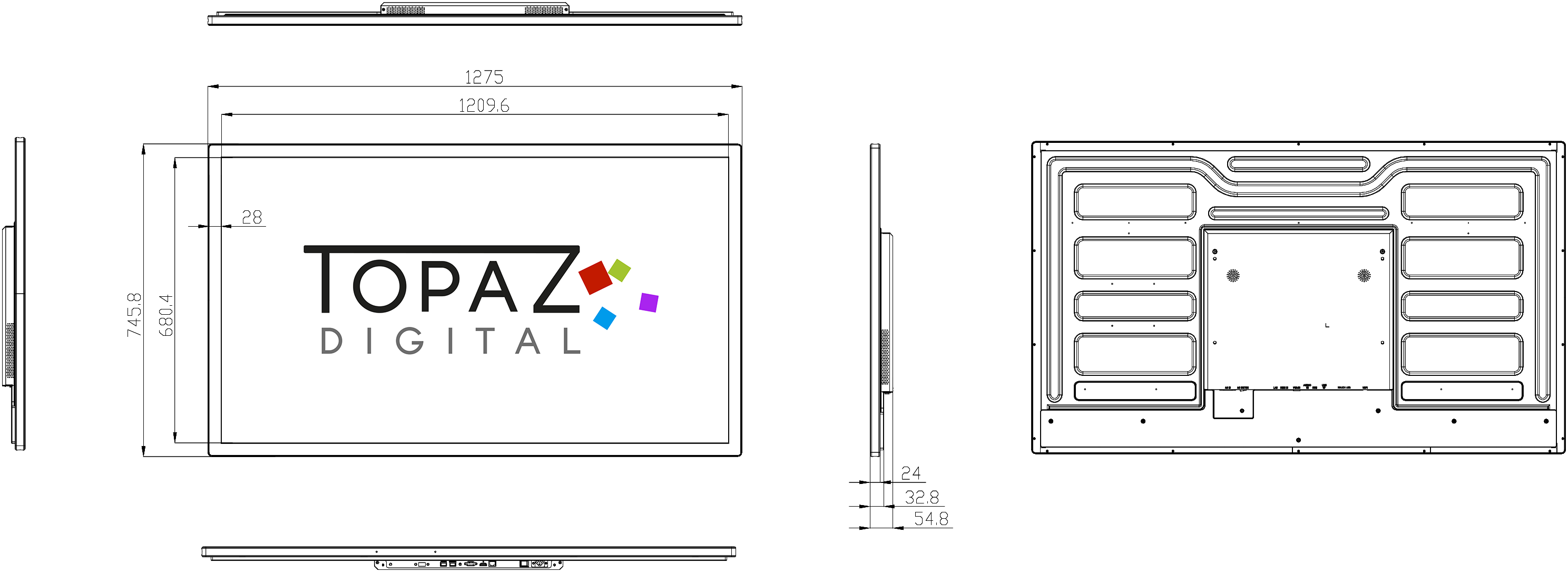

55″
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Launch CMS
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
