INTERACT WITH YOUR CUSTOMERS WITH OUR EYE-CATHCING 23″ SHELF EDGE DISPLAYS
Upgrade your printed shelf labels to our interactive shelf digital endcap display. Make use of the digital display with eye-catching animations and messages to advertise for in store promotions.
With the built in Cloud Management software update the displays remotely within an instant, no need to change the printed shelf labels when changing promotions.
Download Product Sheet
See Product Specs
Product Images

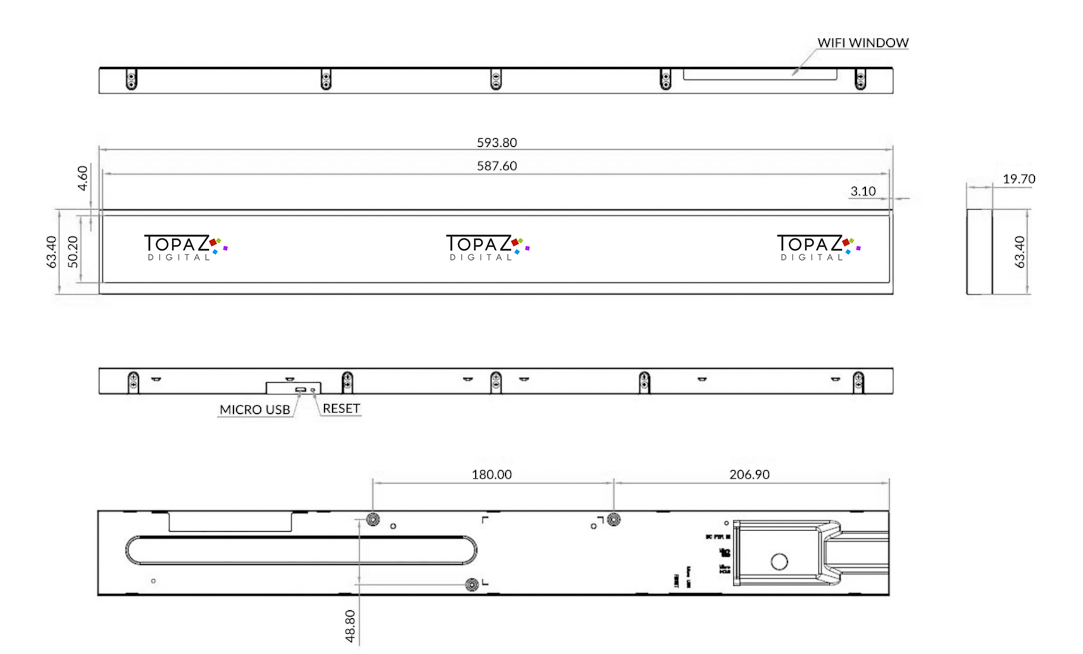

TOPAZ SHELF EDGE SPECIFICATIONS
| SIZE | 23" |
|---|---|
| Unit Size (hxw mm) | 158 x 1920 |
| Unit Weight (kg) | 0.82 |
| Display Area (mm) | 587.6 x 50.2 |
| Aspect Ratio | 9:16 |
| Bezel Size (mm) | Top: 4.6, Left, Right: 3.1, Bottom: 8.6 |
| Brightness (cd/m2) | 700 |
| Colour | 16.7M |
| Viewing Angle | 178° |
| Contrast ratio | 1000:1 |
| Colour | 16.7M |
| Viewing Angle | 178° |
| Input Voltage | AC110-240V (50Hz-60Hz) |
| Power Consumption | <36 |
| Display Size | 50" |
|---|---|
| Video | Micro HDMI |
| Power | USB-C |
| SIZE | 23" |
|---|---|
| Media Resolution | 1920 x 158 |
| CPU | ARM Cortex™-A17 , Quad-core, 1.6GHz |
| GPU | ARM Mali-T764 500MHz |
| RAM | 1GB DDR3 |
| USB | Micro USB 2.0 (Host 1ea, OTG 1ea) |
| LAN | 10/100M Ethernet (Network Version Only) |
| WI-FI | 802.11 b/g/n (2.4GHz) (Network Version Only) |
| OS | Android 7.1 |
43″
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Launch CMS
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
