ADVERTISE YOUR BRAND LIKE NEVER BEFORE WITH THE TOPAZ OUTDOOR PORTABLE DISPLAY
TOPAZ is proud to introduce our latest innovation the TOPAZ 43” Outdoor A-Board display. A lightweight portable all weather digital display
Designed for use in any outdoor setting, the outdoor display is IP65 rated and has a toughened display. The TOPAZ Outdoor A-Board display can be easily moved around with the rugged all terrain wheels.
Keep the display secure with the built-in locking bar, for the added security a padlock can be used.
The display is perfect for reaching a customer in any outdoor environment. It enables the retailer or brand to keep their message fresh for their latest promotions.
Download Product Sheet
See Product Specs
Product Images
TOPAZ OUTDOOR A-BOARD MOUNTED DISPLAY
| SIZE | 43" |
|---|---|

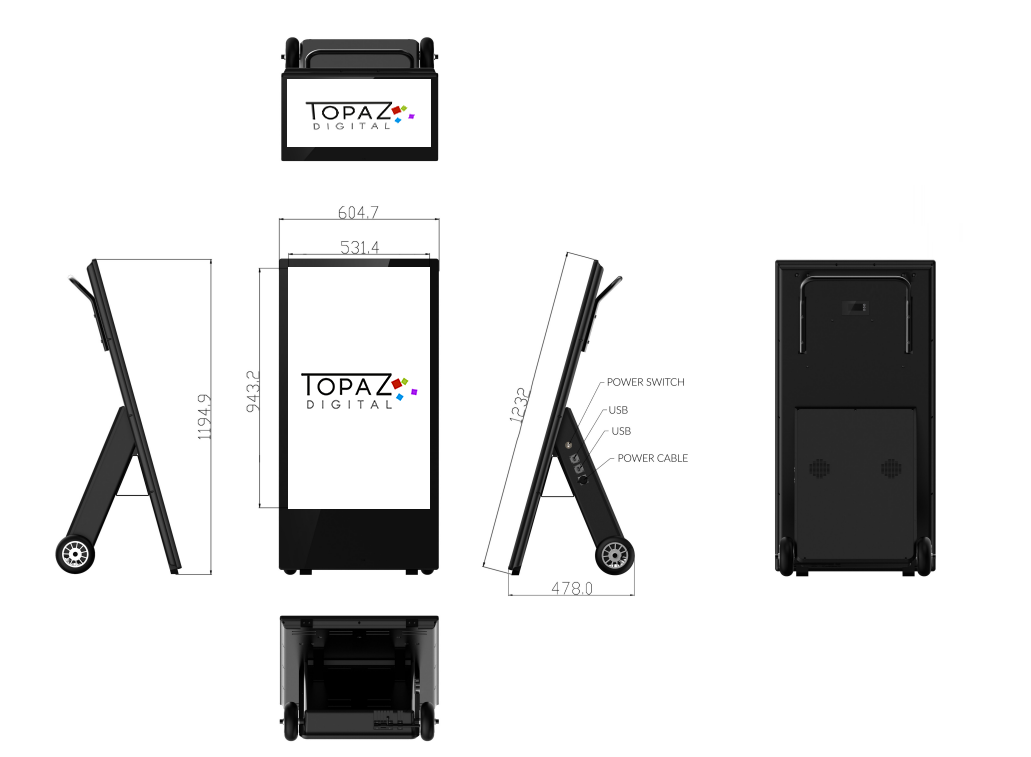

| Unit size (wxhxd mm) | 1232x604.7x478 |
| Unit Weight (kg) | 37.5 |
| Display Area (mm) | 531.4x943.2 |
| Speaker Type | 5W, 8Ω (x2) |
| Resolution | 1920x1080 |
| Aspect Ratio | 16:9 |
| Brightness (cd/m2) | 700 |
| Contrast ratio | 5000:1 |
| Colour | 16.7M |
| Viewing Angle | 178° |
| Working Temperature | 0ºC to 50ºC |
| SIZE | 43" |
|---|---|
| Battery Technology | Integrated lithium polymer |
| Charging Time | 7 Hours |
| Battery Life | 14 Hours |
| Battery Capacity | 44000mAh |
| Power Supply | 29.4V – 21V |
| Power Consumption | 126W |
| Energy | 1108.8 Watt-hours |
| SIZE | 43" |
|---|---|
| Media Resolution | 1920x1080 |
| Internal Memory | 16GB |
| CPU | Quad-Core ARM Cortex A17, 1.6GHz |
| GPU | Quad-Core ARM Mali-T764 |
| RAM | 2GB DDR3 |
| ROM | 8GB eMMC |
| USB | 1 x USB (OTG/HOST), 4 x USB (HOST) |
| LAN | 100/1000M Ethernet |
| WiFi | 802.11b/g/n/ac |
| OS | Android 7.1 |
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 |
| Software | TOPAZ CMS |
| Media Formats | Video: MPG4 Image: JPG |
43″
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Launch CMS
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
