ENTER THE WORLD OF DIGITAL SIGNAGE
With sleek looks, powerful performance, and inclusive CMS Software
Our VLS series display range has been created to deliver power and performance but with price in mind.
Designed to operate 24/7 and with a 3 year warranty you have piece of mind that you’re investing in commercial grade equipment which has been built for the rigors of digital signage and is perfectly suited to busy commercial environments where quality & reliability are pre-requisites.
These displays feature industry leading IPS panels ensuring the best picture quality while the narrow bezels ensure your content is the focus. Equipped with inbuilt media player and the TOPAZ CMS software these networked displays make broadcasting your messages effortless.
These screens deliver power and functionality combined with exceptional ‘All in One’ pricing.
Download Product Sheet
See Product Specs
Cost Effective, High Quality Digital Signage
Slim & Lightweight
Multi-Screen Sync
IPS Panel
PRODUCT HIGHLIGHTS
Packed with even more power & functionality these displays will not only look great but deliver stunning performance.
LIGHTWEIGHT DESIGN
By using less and lighter materials, component weight is kept to a minimum. This compact design makes both installation and maintenance much more convenient.
INCLUSIVE TOPAZ CMS SOFTWARE
The inclusive, in-built, high-powered TOPAZ CMS Digital Signage Software makes managing and updating your displays easy!
ECO-FRIENDLY POWER TIMER
Reduce your power consumption by automatically scheduling the screen to Power on or off. This allows you to automate when the screen is active & shut it off when your business is closed….ideal for a public environment!
BUILT-IN WI-FI
The VLS Series Screens have integrated Wi-Fi enabling you to connect seamlessly to the TOAPZ™ CMS system. This ensures you can update your message from any PC in the world!
IN-BUILT ANDROID MEDIA PLAYER
As well as being built on the Android 7.1 Operating System the ASL range all feature a more powerful CPU and graphics processor enabling you to handle more demanding graphics in turn delivering more immersive and attention grabbing content!
PORTRAIT OR LANDSCAPE
The ASL Displays and free, inclusive slim wall mounts make it easy to position your displays in either portrait or landscape orientation.
TOPAZ WALL MOUNTED VLS SPECIFICATIONS
| SIZE | 32" | 43" | 50" | 55" |
|---|---|---|---|---|

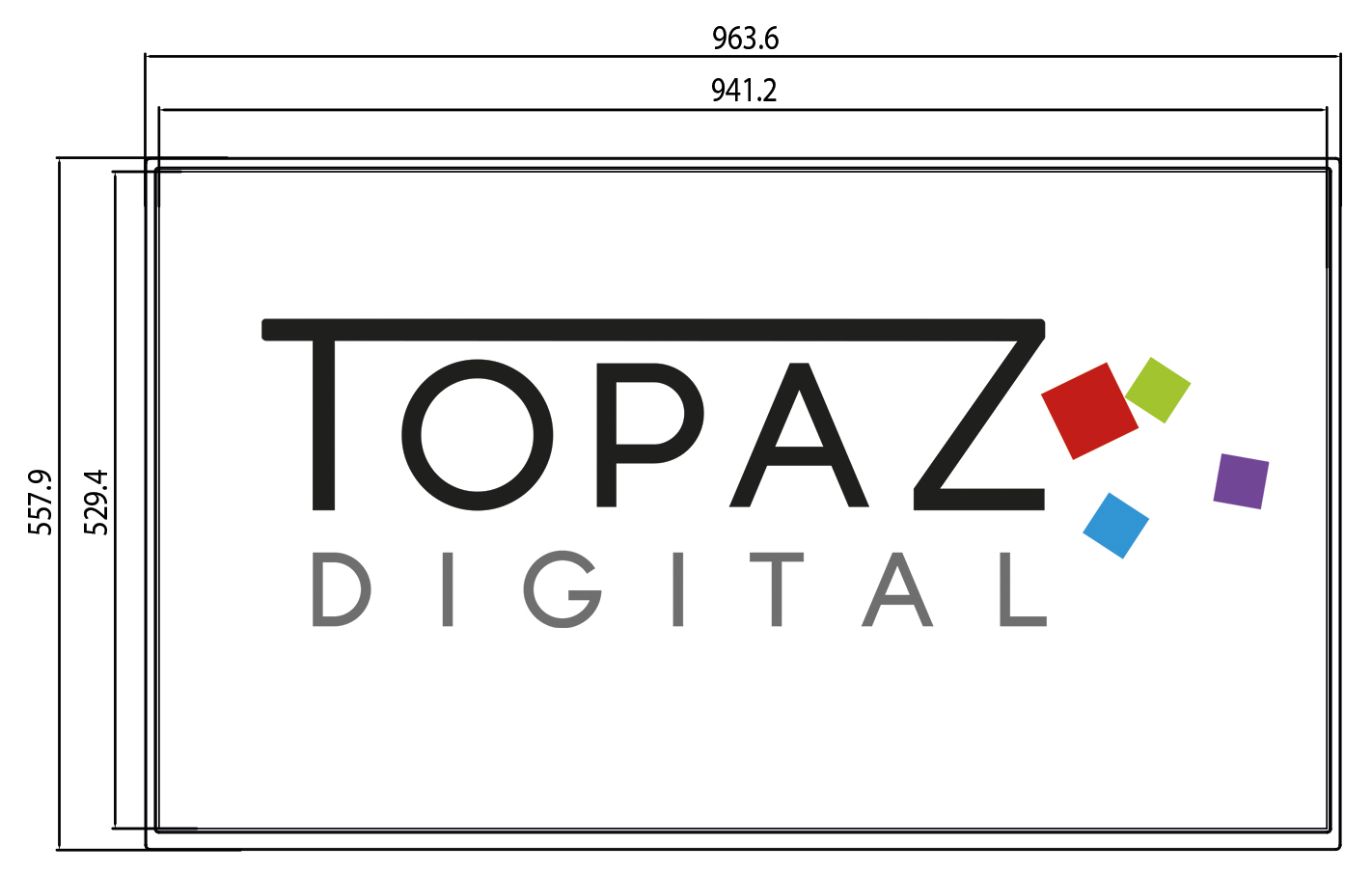

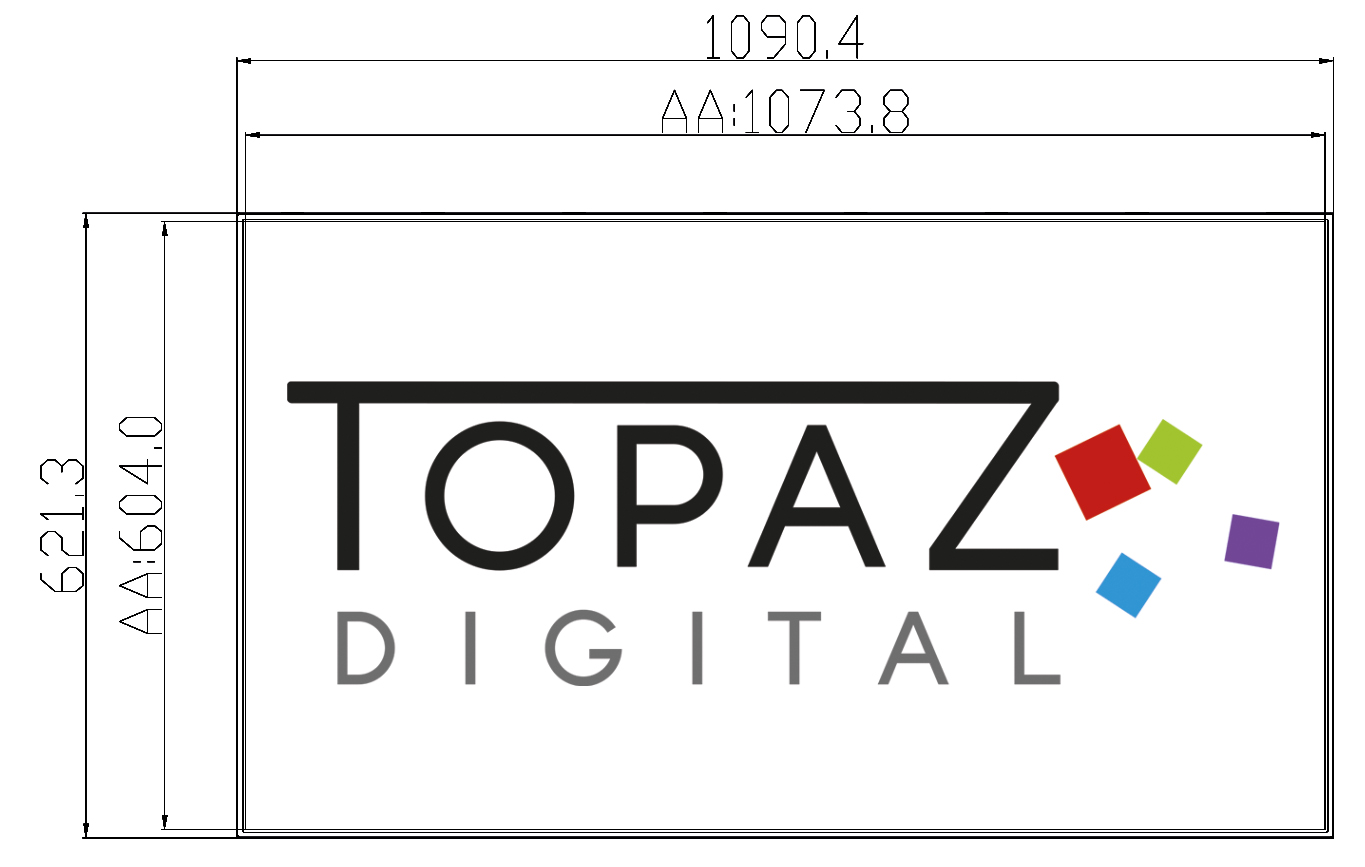

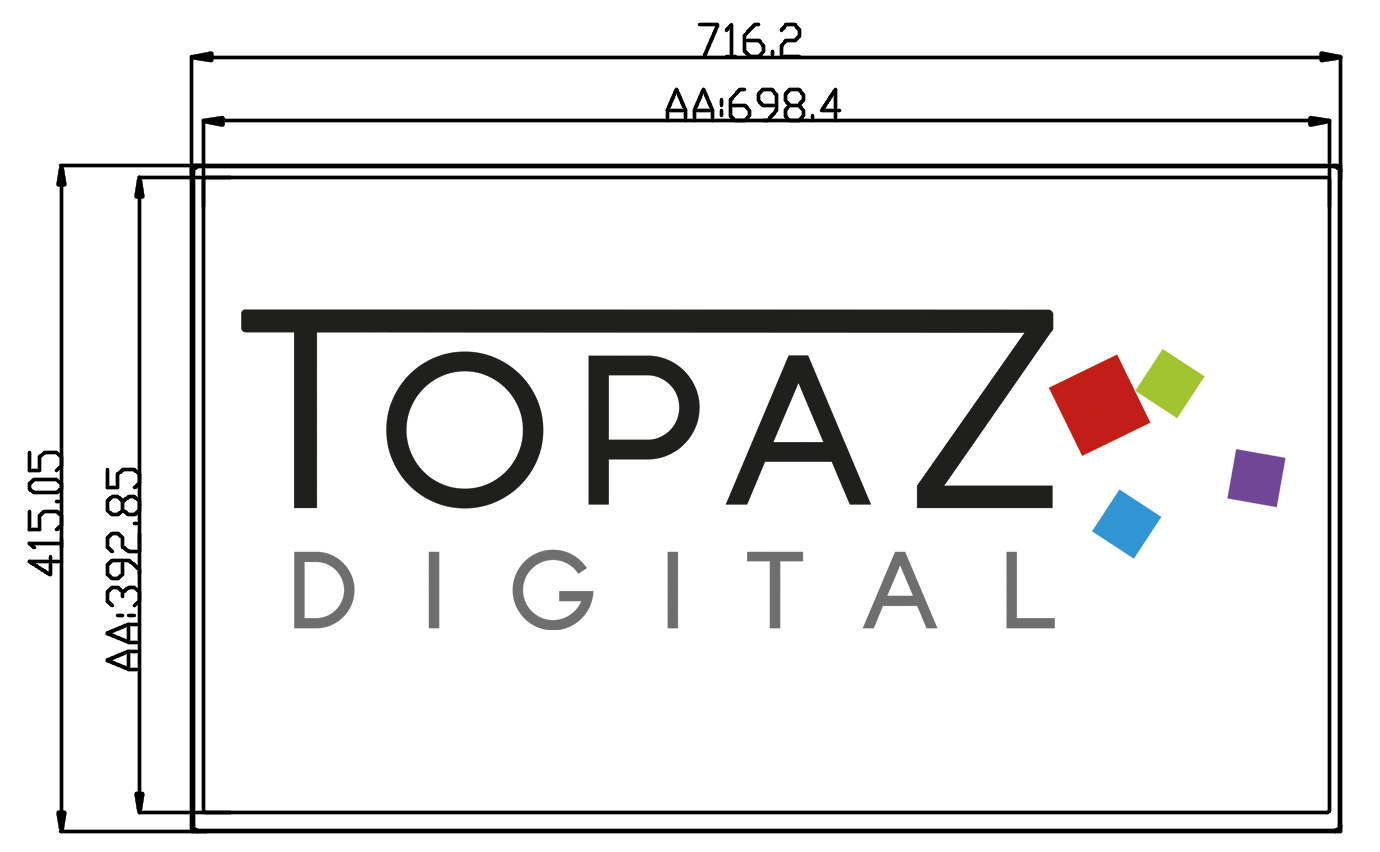

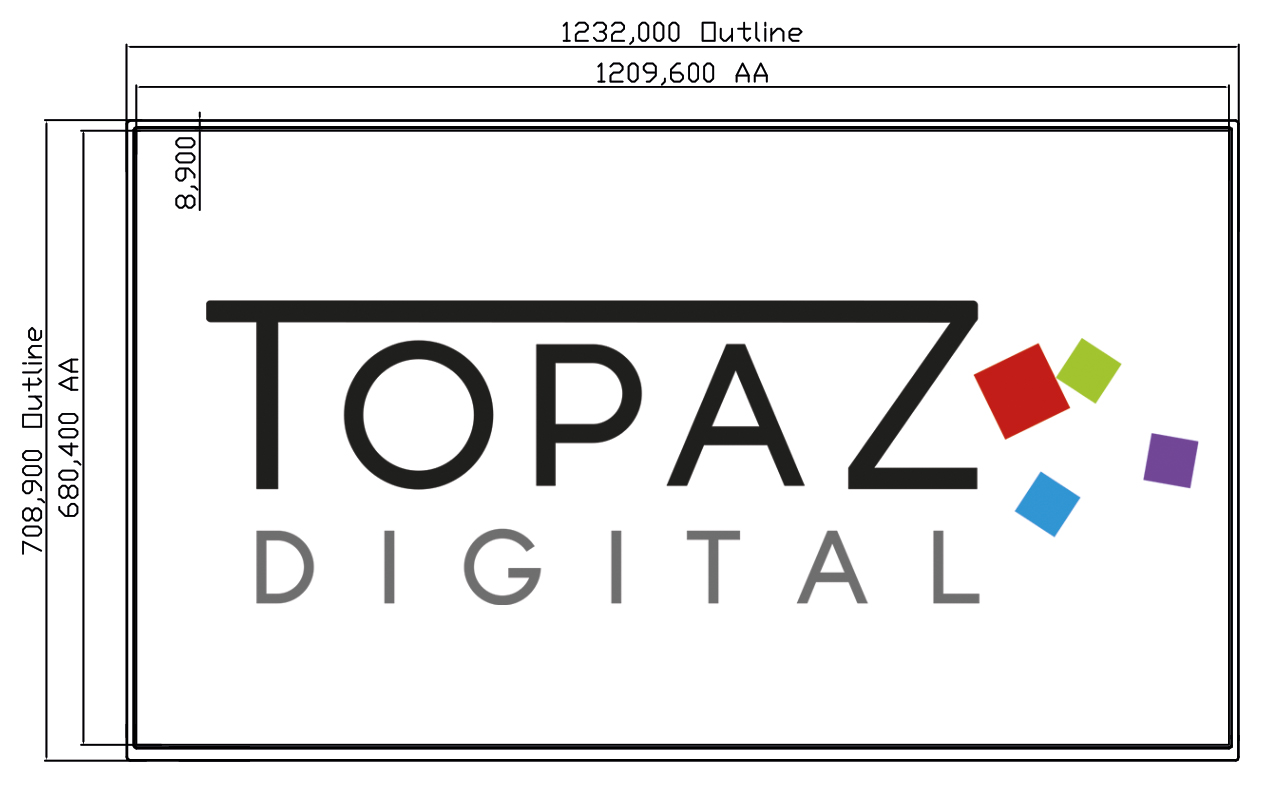

| Unit Size (wxhxd mm) | 716.2 x 415 x 45.95 | 963.6 x 557.9 x 46.1 | 1090.4 x 621.3 x 56.9 | 1232 x 708.9 x 50.4 |
| Unit Weight (kg) | 8.6 | 11.25 | 19.5 | 18 |
| Display Area (mm) | 698.4 x 393 | 941.2 x 529.4 | 1073.8 x 604 | 1209.6 x 680.4 |
| VESA Config | 400 x 200 | 400 x 200 | 400 x 400 400 x 200 | 400 x 200 |
| Speaker Type | 5W, 8Ω (x2) | 5W, 8Ω (x2) | 5W, 8Ω (x2) | 5W, 8Ω (x2) |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Brightness (cd/m2) | 450 | 450 | 450 | 450 |
| Contrast ratio | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Colour | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing Angle | 178° | 178° | 178° | 178° |
| Input Voltage | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) | AC110-240V (50Hz-60Hz) |
| Working Temperature | 0ºC to 50ºC | 0ºC to 50ºC | 0ºC to 50ºC | 0ºC to 50ºC |
| Display Size | 32" | 43" | 50" | 55" |
|---|---|---|---|---|
| Video | HDMI VGA | HDMI VGA | HDMI VGA | HDMI VGA |
| Audio | Audio Socket (3.5mm) | Audio Socket (3.5mm) | Audio Socket (3.5mm) | Audio Socket (3.5mm) |
| SIZE | 32" | 43" | 50" | 55" |
|---|---|---|---|---|
| Media Resolution | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 | 1920 x 1080 1080 x 1920 |
| Internal Memory | 8GB eMMC | 8GB eMMC | 8GB eMMC | 8GB eMMC |
| CPU | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz | Quad-Core ARM Cortex A17, 1.6GHz |
| GPU | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 | Quad-Core ARM Mali-T764 |
| RAM | 2GB DDR3 | 2GB DDR3 | 2GB DDR3 | 2GB DDR3 |
| ROM | 8GB eMMC | 8GB eMMC | 8GB eMMC | 8GB eMMC |
| USB | 2 x USB (HOST) | 2 x USB (HOST) | 2 x USB (HOST) | 2 x USB (HOST) |
| LAN | 100/1000M Ethernet | 100/1000M Ethernet | 100/1000M Ethernet | 100/1000M Ethernet |
| WiFi | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11b/g/n/ac |
| OS | Android 7.1 | Android 7.1 | Android 7.1 | Android 7.1 |
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 |
| Software | TOPAZ CMS | TOPAZ CMS | TOPAZ CMS | TOPAZ CMS |
| Media Formats | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG | Video: MPG4 Image: JPG |
32″
43″
50″
55″
TOPAZ Content Management System (CMS)
- Manage your content through our cloud based content management system from anywhere in the world.
- User control enables you to manage your users and control who in your organisation has access to update specific areas.
- Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
- Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
- Create multiple playlists to determine exactly when the relevant content is displayed.
- Update your screens individually or in groups, manually or automatically depending on your requirements.
Launch CMS
Create custom layouts –
Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!
This allows you to deliver targeted content and display your messages exactly how you want to!
Populate your layout –
Upload your images and videos and simply drag and drop into your created zones to create your playlist!
Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!
Update your screens from anywhere –
Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.
