REACH YOUR CUSTOMERS WHATEVER THE WEATHER WITH THE TOPAZ OUTDOOR DISPLAY RANGE

With Inclusive TOPAZ Cloud Based Software with Android Power and Functionality.

Our outdoor range combines all the benefits of our Android SL displays with the added benefit of being housed in a robust IP65 rated enclosure ensuring your message can be broadcast regardless of the weather. You benefit from all the same design qualities of the SL displays with the rounded corners and aluminum edging together with all the in-built power and functionality including the ‘Out of the Box, Fully Inclusive’ approach which means there are never any recurring costs with everything you need included!

The displays themselves are sunlight readable, fully weatherproofed and able to operate up to +50◦C or down to Minus 50◦C with the additional heater. So whatever the weather you can be sure of reaching your customers wherever they are & as our Outdoor displays use the same CMS platform as our indoor displays you can control your entire network both indoor and outdoor from the same control panel.

Download Product Sheet
Jigsaw-apart_outdoor

Typical Digital Signage Solution

jigsaw-solution

The TOPAZ SL All Inclusive Solution

247-icon
android-icon
cms-icon
hdmi-icon
lock-icon
portrait_landscape-icon
sunlight-readable-icon
vandal-proof-icon
weatherproof-icon
wifi-icon

PRODUCT HIGHLIGHTS

Powerful networked displays, fully weatherproofed.

OUTDOOR ENCLOSURE

highlights-outdoor1

Designed with robust, corrosion protected casing to protect against the elements and the public. With an IP65 rating, it keeps out all airborne particles as well as being protected from any wet weather conditions.

ANTI-REFLECTIVE GLASS

highlights-outdoor2

The glass frontage is also anti-reflective to help defuse direct sunlight shining on the display ensuring your message can be clearly seen.

SUNLIGHT READABLE

highlights-outdoor3

Brightness is paramount when using outdoor screens, these displays use commercial grade Ultra High Brightness panels (2500 cd/m2); more than 5 times brighter than a standard home TV to allow easy readability in direct sunlight.

ADVANCED TEMPERATURE CONTROL

highlights-outdoor4

The internal air-conditioning system allows the screens to be in constant use in an outdoor environment. Internal fans keep the panel and other internal components at the optimum working temperature; ensuring a long and reliable life for your display.

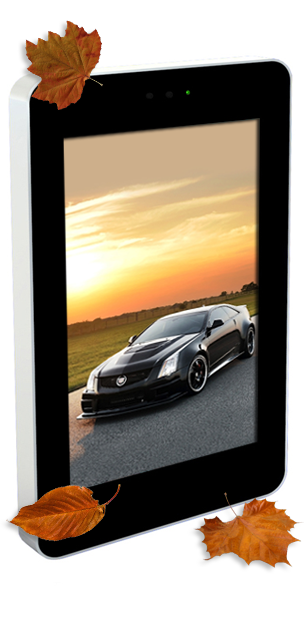

Outdoor_WallMounted_Main
android-mascot

TOPAZ Content Management System (CMS)

  • Manage your content through our cloud based content management system from anywhere in the world.
  • User control enables you to manage your users and control who in your organisation has access to update specific areas.
  • Clients are issued with a username and password for our secure web portal, where they can upload their content at the click of a button which is stored on our secure server.
  • Utilize zoned templates to present your videos, images, scrolling text messages, web pages and live RSS feeds.
  • Create multiple playlists to determine exactly when the relevant content is displayed.
  • Update your screens individually or in groups, manually or automatically depending on your requirements.
Launch CMS
CMS-flow
cms-create

Create custom layouts –

Choose from one of the pre-designed templates or create your own layouts using zones such as video, images, text, web pages, weather and more!

This allows you to deliver targeted content and display your messages exactly how you want to!

cms-populate

Populate your layout –

Upload your images and videos and simply drag and drop into your created zones to create your playlist!

Text zones can also be populated through linking to external RSS feeds or custom messaging – ensuring your messages are targeted as well as informative!

cms-update

Update your screens from anywhere –

Content can be uploaded and managed from anywhere in the world via our secure web portal. Simply log in, upload your images and videos to our secure server and send them directly to your screens.

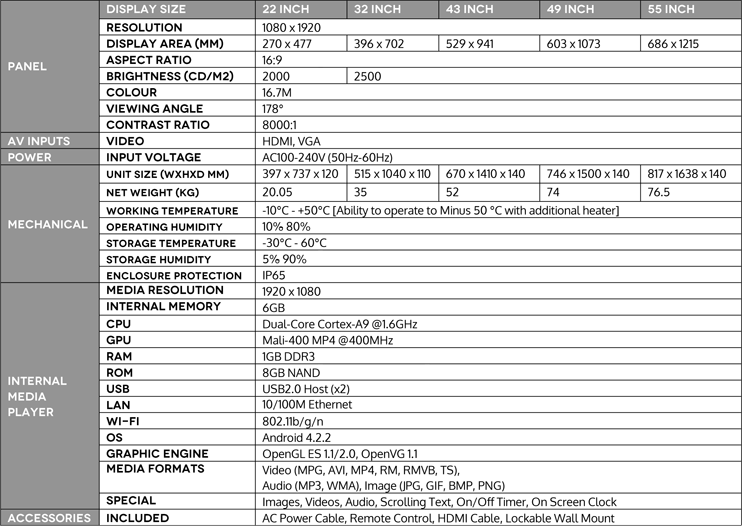

TOPAZ OUTDOOR ANDROID SL SPECIFICATIONS

outdoor-wm-spec-text-bar
outdoor-wm-specs-22-32-43-49-55

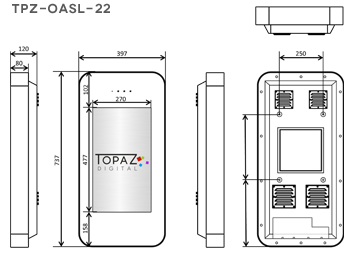

22-oasl-wm-drawing
32-oasl-wm-drawing
43-oasl-wm-drawing
49-oasl-wm-drawing

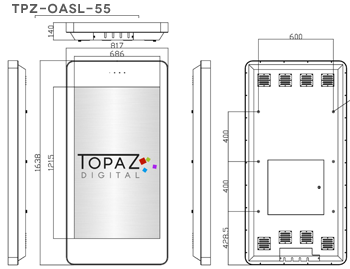

55-oasl-wm-drawing
